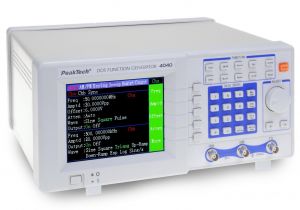

DDS Function Generator, 100 mHz – 50 MHz, P4040 (50Mhz, 2 Chanel)

Specifications:

Manufacturer: Peaktech- Germany

Warranty: 12 Months

Frequency range: 100 mHz – 50 MHz

Output waveforms: sine, square, pulse, TTL, DC, triangle, sawtooth, stair, sweep, cardiac, sin(x)/s, burst, AM, FM, 2PSK, 4PSK, 2FSK, 4FSK, OSK, ASK

Vertical resolution: 14 bits

Sample rate: 400 MS/s

Harmonic distortion: -45 dBc

Total distortion: < 0,1 %

Square waveform: < 20 ns rise/fall time

Duty cycle: 0,1 – 99,9 %

Frequency resolution: 100 mHz

Amplitude range: 0 – 20 Vpp

Amplitude offset: ± 4 V

Amplitude resolution: 1 0/00

Frequency range: 10 µHz – 5 MHz

Waveform lenght: 4096 points

Resolution: 1 µHz

Power amplifier: 7 W (integrated)

Operation voltage: 100 ~ 120 V / 200 ~ 240 V AC; 50/60 Hz switchable ext.

Dimensions (WxHxD): 330 x 155 x 285 mm

Weight: 4 kg

DDS Function Generator, 100 mHz – 50 MHz with LCD-display

New DDS function generator in the high performance indexes with numerous function charateristics which are necessary for the fast completion of measuring. The simple and clear front panel design and 5,7” color liquid chrystal display shows the whole working states of the generator and set the corresponding parameters. Moreover, the optional extended functions enhance the system characteristics.

• 5,7” TFT LCD with clear menu interface and working parameters
• High frequency accuracy: up to 10-5
• High frequency resolution: 10 µHz
• Memory for presetting up to 10 settings
• Burst and modulation property: AM, FM, FSK, ASK, OSK, PSK
• Frequency, period, amplitude virtual-, peak-peak- and power level value selectable
• USB interface
• Intregrated frequency counter up to 100 MHz and 7 W power amplifier
• Frequency- and amplitude sweeping
• Safety: EN 61010-1; CAT II
• Accessories: power cable, USB interface cable, software for Windows 2000/XPVISTA and WIN 7, BNC cable, spare fuse and operation manual
