Thông số kỹ thuật:
Hãng sản xuất: TPI- MỸ
Xuất xứ: Hàn Quốc
Bảo hành: 12 Tháng
|
DC Volts |
Maximum Input: 1000V Maximum Resolution: 0.1mV Accuracy: +/-0.5% |
|
AC Volts |
Maximum Input: 750V Maximum Resolution: 0.01mV Accuracy: +/-0.8% |
|
DC Amps |
Maximum Input: 10A Maximum Resolution: 0.01μA Accuracy: +/-5% |
|
AC Amps |
Maximum Input: 10A Maximum Resolution: 0.01μA Accuracy: +/-0.75% |
|
Điện trở (Ohms) |
Maximum Input: 40MΩ Maximum Resolution: 0.1mΩ Accuracy: +/-0.75% |
|
Điện dung |
Maximum Input: 20000µF Maximum Resolution: 0.01µF Accuracy: +/-2% |
|
Kiểm tra liên tục |
Audible at less than 100Ω |
|
Diode |
3V at 1mA maximum output |
|
Giữ giá trị |
Yes |
|
Vỏ bọc bảo vệ |
Yes (standard) |
|
Màn hình hiển thị |
4000 count LCD |
|
Lựa chọn dải đo |
Auto / Manual |
|
Nhiệt độ hoạt động |
32°F to 104°F (0°C to 40°C) |
|
Nhiệt độ bảo quản |
14°F to 122°F (-10°C to 50°C) |
|
Độ ẩm |
80% không ngưng tụ |
|
Kích thước |
7.4” x 3.4” x 1.2” (187mm x 86mm x 33mm) with boot |
|
Trọng lượng |
12oz (340g) with boot |
|
Kiểu pin |
1.5V “AA” Alkaline (2) |
|
Tuổi thọ pin |
200hrs Typical |
|
OverInput Category |
CAT III 600V |
|
Tiêu chuẩn |
cULus 61010-1, IEC 61010-1 |

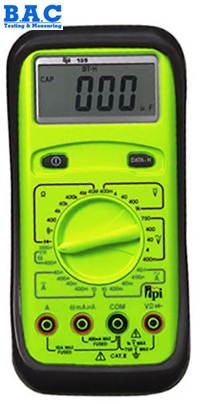

Full size DMM with capacitance; 1,000 DC volts and 750 AC volts; 0.5% DCV basic accuracy.
4,000 count display
0.5% DCV basic accuracy
0 to 750 ACV; max resolution 1mV
0 to 1,000 DCV; max resolution 0.1mV
0 to 40MΩ; max resolution 0.1Ω
0 to 10 amps AC/DC; 0.1uA resolution
Data Hold
cULus 61010-1
| Model 135 Specifications | ||
|---|---|---|
| DC Volts | Maximum Input: 1000V
Maximum Resolution: 0.1mV Accuracy: +/-0.5% |
|
| AC Volts | Maximum Input: 750V
Maximum Resolution: 0.01mV Accuracy: +/-0.8% |
|
| DC Amps | Maximum Input: 10A
Maximum Resolution: 0.01μA Accuracy: +/-5% |
|
| AC Amps | Maximum Input: 10A
Maximum Resolution: 0.01μA Accuracy: +/-0.75% |
|
| Resistance (Ohms) | Maximum Input: 40MΩ
Maximum Resolution: 0.1mΩ Accuracy: +/-0.75% |
|
| Frequency | N/A | |
| Capacitance | Maximum Input: 20000µF
Maximum Resolution: 0.01µF Accuracy: +/-2% |
|
| Inductance | N/A | |
| Temperature
(K-Type Thermocouple) |
N/A | |
| Continuity | Audible at less than 100Ω | |
| Diode | 3V at 1mA maximum output | |
| Duty Cycle | N/A | |
| True RMS Responding | No | |
| Conductance | No | |
| Pulse Width | No | |
| Data Hold | Yes | |
| Min/Max Record | No | |
| Time Stamp Logging | No | |
| Relative Mode | No | |
| Compare Mode | No | |
| RS-232 Output | No | |
| Process Loop Output | No | |
| Sleep Mode / Auto Off | No | |
| Protective Boot | Yes (standard) | |
| Display Type | 4000 count LCD | |
| Range Selection | Auto / Manual | |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) | |
| Storage Temperature | 14°F to 122°F (-10°C to 50°C) | |
| Humidity | 80% non-condensing | |
| Size | 7.4” x 3.4” x 1.2” (187mm x 86mm x 33mm) with boot | |
| Weight | 12oz (340g) with boot | |
| Battery Type | 1.5V “AA” Alkaline (2) | |
| Battery Life | 200hrs Typical | |
| OverInput Category | CAT III 600V | |
| Agency Approval | cULus 61010-1, IEC 61010-1 | |
| Warranty | Limited Lifetime | |
CAT II – 1000V, CAT III – 600V
