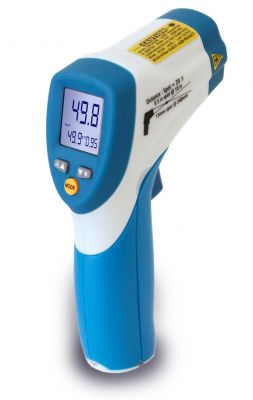

Máy đo nhiệt độ bằng hồng ngoại Peaktech- Đức, 4980(-50 … +800 °C)
Thông số kỹ thuật:
Hãng sản xuất: Peaktech- Đức
Xuất xứ: China
Bảo hành: 12 Tháng
Dải đo: -50 … +20°C/20 … 800°C (-58 … +68°F/68 … 1472°F)
Độ chính xác: ± 1,0 % ± 2° C (2,8° F)
Thời gian hồi đáp: 150ms
Dải phổ: 630-670 nm
Hệ số phát xạ: 0,10 ~ 1,0
Tỷ lệ khoảng cách và tiêu điểm: 20:1
Hiển thị: 0,1° C/F
Nguồn: 9 V battery
Trọng lượng: 170 g
Kích thước: 104 x 146 x 43 mm
Cung cấp bao gồm: Hộp đựng, pin và hướng dẫn sử dụng
Dual-Laser-Pointer IR-Thermometer, -50 … +800°C

New innovative IR-Thermometer allows non-contact (infrared) temperature measurements at the touch of a button. The built-in dual laser pointer increases target accuracy while the backlight LCD and handy pushbuttons combine for convenient, ergonomic operation. These non-contact infrared thermometers can be used to measure the temperature of object surfaces that are improper to be measured by traditional (contact) thermometers such as moving objects, voltage carrying surfaces or objects which are hard to reach.
- Emissivity digitally adjustable from 0.10 to 1.0
- MAX temperature displays
- Automatic selection range and display resolution 0,1°C (0,1°F)
- Switch over of single and duration measurements possible
- Alarm-function of high and low values, chosen freely adjustable over the complete measuring range
- Precise non-contact measurements
- Automatic data hold
- Wide range application: plastic molding, asphalt, marine, screen printing, measure ink and dryer temperature, HVAC/R, diesel and flat maintenance, safety and fire control
- Safety: EN 60825-1
- Accessories: carrying case, battery and manual
|
Range (IR) |
-50 … +20°C/20 … 800°C (-58 … +68°F/68 … 1472°F) |
|
Accuracy |
± 1,0 % ± 2° C (2,8° F) |
|
Response time |
150ms |
|
Resolution |
0,1° C/F |
|
Optical resolution |
20 : 1 |
|
Emissivity |
adjustable / variable 0,10 ~ 1,0 |
|
Laser class |
class: 2 |
|
Operation voltage |
9 V battery |
|
Dimensions (WxHxD) |
104 x 146 x 43 mm |
|
Weight |
170 g |
