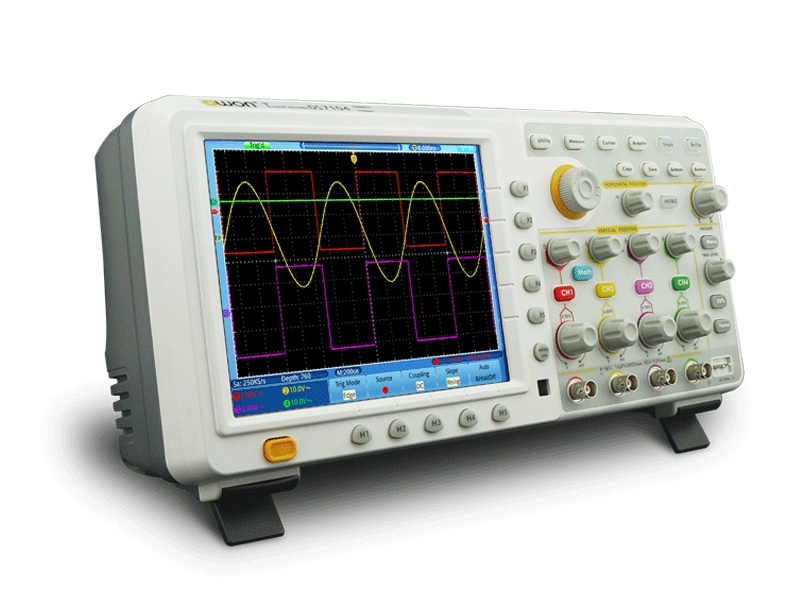

Máy hiện sóng sô 4 kênh Owon- China, TDS8204 (200Mhz, 2Gsa/s, 4 channel, Màn hình cảm ứng)
Thông số kỹ thuật:
Hãng sản xuất: Owon- China
Xuất xứ: China
Bảo hành: 12 Tháng
Băng thông : 200Mhz
Số kênh : 4
Tốc độ lấy mẫu : 2Gsa/s
Hiện thị : 8 inch, Touch
Đầu vào Coupling : DC, AC, GND
Trở kháng vào : 1MΩ ± 2%, 10pF ± 5pF ; 50Ω ± 1%
Que đo : 1X, 10X, 100X, 1000X
Điện áp vào max : 400V (PK – PK) (DC + AC, PK – PK) (10Mohm)
Kênh : 50Hz：100：1 ; 10MHz：40：1
Độ dài ghi : 7.6M
Thời gian quét : 2ns/div – 100s/div
Biến đổi AD : 8 bít
Điện áp quét : 2mV/div – 10V/di
Rise time : <=1.7ns
Độ chính xác DC : ±3%
Trigger : Edge, Pulse, Video, Slope
Chế độ Trigger : Auto, Normal, Single
Đo tự đông : Vpp, Vavg, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Overshoot, Preshoot,
Rise Time, Fall Time, Delay A→B↑, Delay A→B↓, +Width, -Width, +Duty, -Duty
Tính toán : ＋, －, ×, ÷, FFT
Lưu trữ sóng : 4 dạng
Truyền thông : USB host, Usb device, VGA, LAn
Nguồn : 100-240VAC, 50/60hz
Khối lượng : 1.5Kg
Phụ kiện : QUe đo, đầu nguồn, HDSD
OWON TDS Series digital oscilloscope
Product Series : Touch-screen DSO
Main Features
– Max 200MHz bandwidth, up to 2GS/s realtime sample rate
– 7.6M record length
– 50,000 wfms/s waveform capture rate
– waveform zooming (horizontal / vertical), and saving
– FFT points (length, and resolution variable)
– multi-window extension
– user-friendly voice warning
– 8 inch 800 x 600 pixels high def LCD
– multi- communication interface : USB, VGA, LAN
Application
electronic circuit debugging circuit testing
design and manufacture education and training
automobile maintenance and testing
|
Model |
TDS8204 |
|
|
Bandwidth |
200MHz |
|
|
Channel |
4 |
|
|
Sample Rate |
2GS/s |
|
|
Waveform Capture Rate |
50,000 wfms/s |
|
|
Display |
8″ touch screen color LCD |
|
|
Input Coupling |
DC, AC, and GND |
|
|
Input Impedance |
1MΩ ± 2%, in parallel with 10pF ± 5pF ; 50Ω ± 1% |
|
|
Probe Attenuation Factor |
1X, 10X, 100X, 1000X |
|
|
Max Input Voltage |
1MΩ input impedance : 400V (PK – PK) (DC + AC, PK – PK) ; 50Ω input impedance : 5V (PK – PK) (DC + AC, PK – PK) |
|
|
Channel Isolation |
50Hz：100：1 ; 10MHz：40：1 |
|
|
Interpolation |
sin(x)/x |
|
|
Record Length |
7.6M |
|
|
Horizontal Scale (s/div) |
2ns/div – 100s/div, step by 1 – 2 – 5 |
|
|
Interval (△T) Accuracy (full bandwidth) |
Single : ±(1 interval time + 100ppm × reading + 0.6ns), Average>16 : ±(1 interval time + 100ppm × reading + 0.4ns) |
|
|
Vertical Resolution (A/D) |
8 bits resolution (4 channels simultaneously) |
|
|
Vertical Sensitivity |
2mV/div – 10V/div (at input) |
|
|
Analog Bandwidth |
200MHz |
|
|
LF Respond (AC, -3dB) |
≥10Hz (at input, AC coupling, -3dB) |
|
|
Rise Time |
≤1.7ns |
|
|
DC Accuracy |
±3% |
|
|
Trigger Type |
Edge, Pulse, Video, Slope |
|
|
Trigger Mode |
Auto, Normal, Single |
|
|
Trigger Level Range |
±6 div from the screen center |
|
|
Trigger level Accuracy (typical) |
±0.3 div |
|
|
Line / Field Frequency (video) |
NTSC, PAL, and SECAM standard |
|
|
Automatic Measurement |
Vpp, Vavg, Vamp, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Overshoot, Preshoot, |
|
|
Waveform Math |
＋, －, ×, ÷, FFT |
|
|
Waveform Storage |
4 reference waveforms |
|
|
Lissajous Figure |
Bandwidth |
full Bandwidth |
|
Phase Difference |
±3 degrees |
|
|
Cursor Measurement |
△V, and △T between cursors |
|
|
Communication Port |
USB host, USB device, VGA, LAN、AUX |
|
|
Power Supply |
100 – 240 V AC, 50/60Hz, CAT II |
|
|
Dimension (W×H×D) |
380 × 180 × 115 (mm) |
|
|
Weight (without package) |
1.5 kg
|
|
