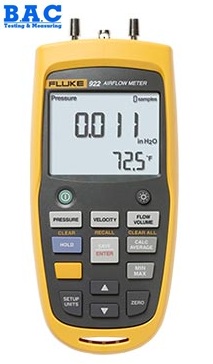

Thiết bị đo tốc độ gió, áp suất, nhiệt độ Fluke- Mỹ, Fluke 922

Liên hệ
Mã sản phẩm: 1974
Liên hệ trực tiếp

 Thông số kỹ thuật:

Hãng sản xuất: Fluke- Mỹ

Bảo hành: 12 Tháng

Technical Specifications

Air Pressure

Range/Resolution/Accuracy

 ± 4000 Pascals / 1 Pascal / ± 1 % + 1 Pascal



 ± 16 in H2O / 0.001 in H2O / ± 1 % + 0.01 in H2O



 ± 400 mm H2O / 0.1 mm H2O / ± 1 % + 0.1 mm H2O



 ± 40 mbar / 0.01 mbar / ± 1 % + 0.01 mbar



 ± 0.6 PSI / 0.0001 PSI / ± 1 % + 0.0001 PSI

Air Velocity

Range/Resolution/Accuracy 250 to 16,000 fpm / 1 fpm / ± 2.5 % of reading at 2000 fpm (10.00 m/s) 1 to 80 m/s / 0.001 m/s / ± 2.5 % of reading at 2000 fpm (10.00 m/s)

Air Flow (Volume)

Range/Resolution/Accuracy

 0 to 99,999 cfm / 1 cfm / Accuracy is a function of velocity and duct size



 0 to 99,999 / 1 m3/hr / Accuracy is a function of velocity and duct size



 0 to 99,999 l/s / 1 l/s / Accuracy is a function of velocity and duct size

Temperature

Range/Resolution/Accuracy 0 °C to 50 °C / ± 1 % + 2 °C / 0.1 °C 32 °F to 122 °F / ± 1 % + 4 °F / 0.1 °F

General Specifications

Operating Temperature

 0 °C to +50 °C (+32 °F to +122 °F)

Storage Temperature



 -40 °C to +60 °C (-40 °F to +140 °F)

Relative Humidity

0% to 90%, non-condensing

IP Rating

 IP40

Operating Altitude

2000 m

Storage Altitude

12000 m

EMI, RFI, EMC

Meets requirements for EN61326-1

Vibration

MIL-PREF-28800F, Class 3

Max Pressure at Each Port

10 PSI

Data storage capacity

99 readings

Power, battery life

 Four AA batteries

Battery Life

280 hours without backlight, 60 hours with backlight

 Thông số kỹ thuật:

Hãng sản xuất: Fluke- Mỹ

Bảo hành: 12 Tháng

Technical Specifications

Air Pressure

Range/Resolution/Accuracy

 ± 4000 Pascals / 1 Pascal / ± 1 % + 1 Pascal



 ± 16 in H2O / 0.001 in H2O / ± 1 % + 0.01 in H2O



 ± 400 mm H2O / 0.1 mm H2O / ± 1 % + 0.1 mm H2O



 ± 40 mbar / 0.01 mbar / ± 1 % + 0.01 mbar



 ± 0.6 PSI / 0.0001 PSI / ± 1 % + 0.0001 PSI

Air Velocity

Range/Resolution/Accuracy 250 to 16,000 fpm / 1 fpm / ± 2.5 % of reading at 2000 fpm (10.00 m/s) 1 to 80 m/s / 0.001 m/s / ± 2.5 % of reading at 2000 fpm (10.00 m/s)

Air Flow (Volume)

Range/Resolution/Accuracy

 0 to 99,999 cfm / 1 cfm / Accuracy is a function of velocity and duct size



 0 to 99,999 / 1 m3/hr / Accuracy is a function of velocity and duct size



 0 to 99,999 l/s / 1 l/s / Accuracy is a function of velocity and duct size

Temperature

Range/Resolution/Accuracy 0 °C to 50 °C / ± 1 % + 2 °C / 0.1 °C 32 °F to 122 °F / ± 1 % + 4 °F / 0.1 °F

General Specifications

Operating Temperature

 0 °C to +50 °C (+32 °F to +122 °F)

Storage Temperature



 -40 °C to +60 °C (-40 °F to +140 °F)

Relative Humidity

0% to 90%, non-condensing

IP Rating

 IP40

Operating Altitude

2000 m

Storage Altitude

12000 m

EMI, RFI, EMC

Meets requirements for EN61326-1

Vibration

MIL-PREF-28800F, Class 3

Max Pressure at Each Port

10 PSI

Data storage capacity

99 readings

Power, battery life

 Four AA batteries

Battery Life

280 hours without backlight, 60 hours with backlight
