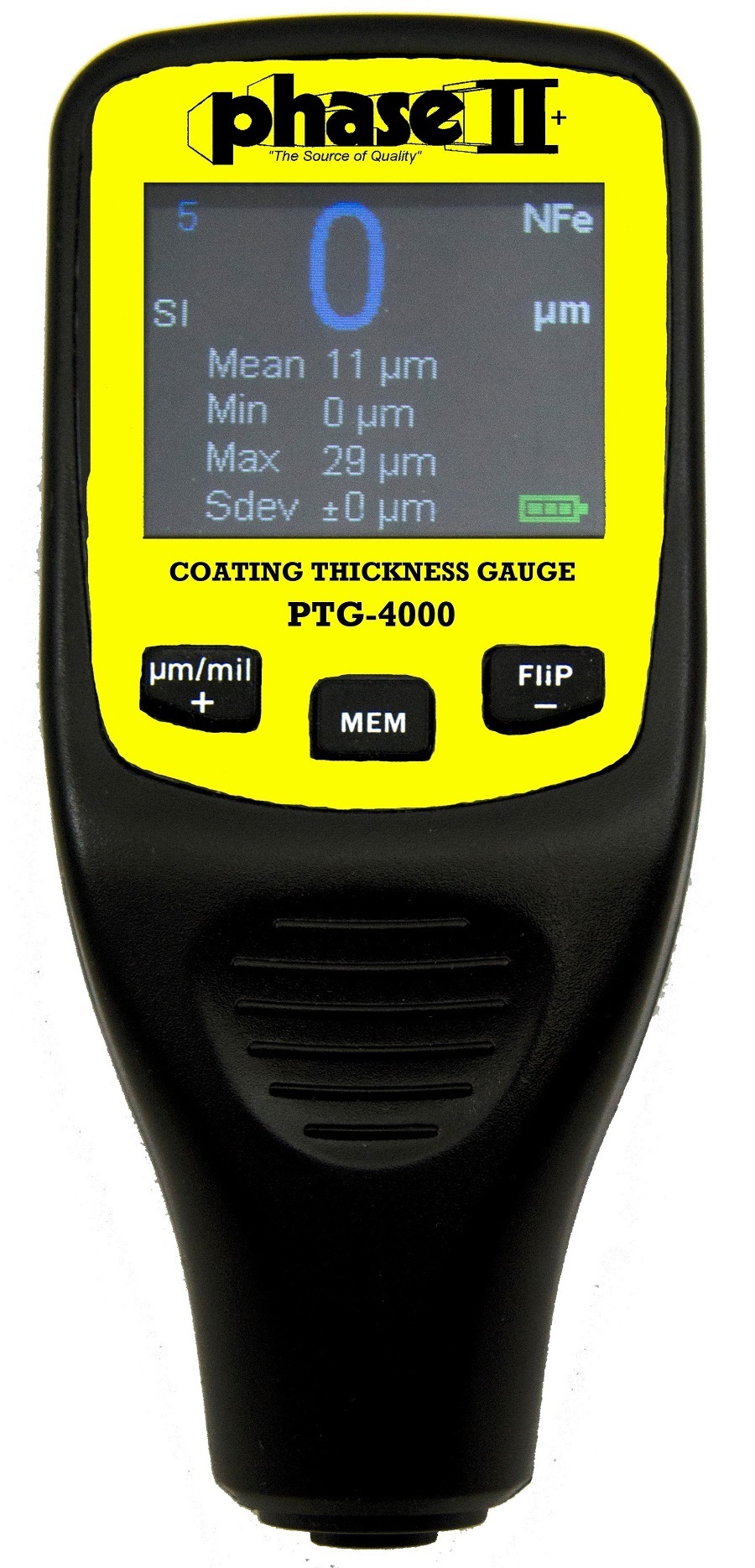

Máy đo độ dầy lớp sơn phủ từ tính và không từ tính PhaseII- Mỹ, PTG-4000(0-1250 µ m)

Thông số kỹ thuật:

Hãng sản xuất: PhaseII- Mỹ

Bảo hành: 12 Tháng

Dải đo: 0- 1250µ m or 0- 50mils

Độ phân dải: 1µ m / 0.1mils

Cấp chính xác: +/- 3% + 2µ m ( +/-3%+0.1 mil )

Màn hình: 3 digit color LCD

Dữ liệu: Min / Max, Trung bình, độ lệch tiêu chuẩn

Chế độ đo đơn hoặc liên tục (Lựa chọn)

Vị trí đo nhỏ nhất: .2” x .2” (5mm x 5mm)

Min substrate thickness: Ferrous: 20 mils (0.5mm) Non-ferrous: 2 mils (50 µ m )

Bán kính cong nhỏ nhất: Convex .12” (3mm), Concave 1.2” (30mm)

Nhiệt độ lớn nhất cho vị trí đo : 302 degrees F (contact time max is 2 seconds)

Nguồn cấp: 2 AAA

Kích thước: 100 x 52 x 29mm

Khối lượng:  2.4oz. (w/o Batteries)

Coating thickness measurement with Color Flip Display

The PHASE II PTG-4000 coating thickness gauge can perform two different methods of calculating thickness measurement by utilizing the characteristics of both eddy current and magnetic induction.

Testing performance is both non-destructive and extremely accurate.

With this state of the art coating thickness gage, you can easily detect the thickness of nonmagnetic coating on a magnetic substrate (ferrous) or an insulating coating on a non-magnetic conductive substrate (non-ferrous) utilizing our auto-detect, integrated probe

The PTG-4000 coating thickness gauge can be used in many areas of industry including automotive auctions, manufacturing, general engineering, commercial inspection, etc.

Main Technical Data

Measuring range: 0-1,250 µ m max. or 0-50 mils

Resolution: 1µ m / 0.1mils

Accuracy: +/- 3% + 2µ m ( +/-3%+0.1 mil )

Display: 3 digit color LCD

Statistics: Min/Max, Average, Std Deviation

Single or Continuous Measurement(Selectable)

Min. measuring area: 0.2”  x 0.2”  (5mm x 5mm)

Min. radius of curvature: Convex: 0.12”  (3mm) Concave: 1.2”  (30mm)

Min. substrate thickness: Ferrous: 20 mils (0.5mm) Non-ferrous: 2 mils (50 µ m )

Max. Surface temperature of test object: 302 degrees F (contact time max is 2 seconds)

Power source: 2-AAA batteries

Dimensions: 100 x 52 x 29mm

Weight: 2.4oz. (w/o Batteries)
