Thông số kỹ thuật:
Hãng sản xuất: TPI- MỸ
Xuất xứ: Hàn Quốc
Bảo hành: 12 Tháng
|
DC Volts |
Maximum Input: 1000V Maximum Resolution: 0.0001mV Accuracy: +/-0.05% |
|
AC Volts |
Maximum Input: 1000V Maximum Resolution: 100μμV Accuracy: +/-0.4% |
|
DC Amps |
Maximum Input: 10A Maximum Resolution: 0.01μA Accuracy: +/-0.15% |
|
AC Amps |
Maximum Input: 10A Maximum Resolution: 0.01μA Accuracy: +/-0.75% |
|
Điện trở (Ohms) |
Maximum Input: 50MΩ Maximum Resolution: 1mΩ Accuracy: +/-0.05% |
|
Tần số |
Maximum Input: 5MHz Maximum Resolution: 0.001Hz Accuracy: +/-0.05% |
|
Điện dung |
Maximum Input: 20mF Maximum Resolution: 0.01nF Accuracy: +/-2% |
|
Cuộn cảm |
Maximum Input: 300mH Maximum Resolution: 0.01mH Accuracy: +/-5% |
|
Nhiệt độ (K-Type Thermocouple) |
Maximum Input: -54°F to 2462°F (-50°C to 1350°C) Maximum Resolution: 0.1°F / °C Accuracy: +/-2% |
|
Kiểm tra liên tục |
Audible at less than 10Ω |
|
Diode |
3V at 1mA maximum output |
|
Hiệu suất |
Maximum Input: 99.9% Maximum Resolution: 0.1% |
|
True RMS Responding |
Có |
|
Độ dẫn |
Có |
|
Pulse Width |
Có |
|
Giữ giá trị |
Có (Two hold system) |
|
Giá trị Min/Max |
Có |
|
Time Stamp Logging |
Có |
|
Relative Mode |
Có |
|
Compare Mode |
Có |
|
Đầu ra RS-232 |
Có, Optically Isolated |
|
Chế độ chờ / Tự đồng tắt |
Có |
|
Vỏ bọc bảo vệ |
Có (standard) |
|
Màn hình hiển thị |
50,000 count backlit LCD with dual sub displays and analog bargraph |
|
Lựa chọn dải đo |
Auto / Manual |
|
Nhiệt độ hoạt động |
32°F to 113°F (0°C to 40°C) |
|
Nhiệt độ bảo quản |
-4°F to 140°F (-20°C to 60°C) |
|
Độ ẩm |
80% non-condensing |
|
Kích thước |
8.3” x 3.7” x 1.9” (210mm x 95mm x 47mm) without boot 8.7” x 4.3” x 2.6 (220mm x 110mm x 65mm) with boot |
|
Trọng lượng |
1.3lbs (570g) without boot 1.9lbs (850g) with boot |
|
Kiểu pin |
9V Alkaline (NEDA 1604) |
|
Tuổi thọ của pin |
50hrs Typical |
|
OverInput Category |
CAT III 600V |
|
Tiêu chuẩn |
cULus 61010-1, IEC 61010-1 |
True RMS DMM with separate fuse and battery compartment.
Data logging
50,000 count display
0.05% DCV basic accuracy
Inductance, Frequency and Capacitance
0 to 750 ACV; max resolution 100uV
0 to 1,000 DCV: max resolution 0.001mV
0 to 50MΩ; max resolution 0.01Ω
Audible continuity
AC/DC amps up to10 amps; resolution 0.01 uA
Analog bar graph
cULus 61010-1
CATIII-1000VC, CATIII-1000V, CAT IV-600V, CAT III 1000V

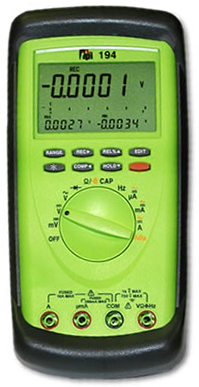

| Model 194 Specifications | ||
|---|---|---|
| DC Volts | Maximum Input: 1000V
Maximum Resolution: 0.0001mV Accuracy: +/-0.05% |
|
| AC Volts | Maximum Input: 1000V
Maximum Resolution: 100μμV Accuracy: +/-0.4% |
|
| DC Amps | Maximum Input: 10A
Maximum Resolution: 0.01μA Accuracy: +/-0.15% |
|
| AC Amps | Maximum Input: 10A
Maximum Resolution: 0.01μA Accuracy: +/-0.75% |
|
| Resistance (Ohms) | Maximum Input: 50MΩ
Maximum Resolution: 1mΩ Accuracy: +/-0.05% |
|
| Frequency | Maximum Input: 5MHz
Maximum Resolution: 0.001Hz Accuracy: +/-0.05% |
|
| Capacitance | Maximum Input: 20mF
Maximum Resolution: 0.01nF Accuracy: +/-2% |
|
| Inductance | Maximum Input: 300mH
Maximum Resolution: 0.01mH Accuracy: +/-5% |
|
| Temperature
(K-Type Thermocouple) |
Maximum Input: -54°F to 2462°F (-50°C to 1350°C)
Maximum Resolution: 0.1°F / °C Accuracy: +/-2% |
|
| Continuity | Audible at less than 10Ω | |
| Diode | 3V at 1mA maximum output | |
| Duty Cycle | Maximum Input: 99.9%
Maximum Resolution: 0.1% |
|
| True RMS Responding | Yes | |
| Conductance | Yes | |
| Pulse Width | Yes | |
| Data Hold | Yes (Two hold system) | |
| Min/Max Record | Yes | |
| Time Stamp Logging | Yes | |
| Relative Mode | Yes | |
| Compare Mode | Yes | |
| RS-232 Output | Yes, Optically Isolated | |
| Process Loop Output | No | |
| Sleep Mode / Auto Off | Yes | |
| Protective Boot | Yes (standard) | |
| Display Type | 50,000 count backlit LCD with dual sub displays and analog bargraph | |
| Range Selection | Auto / Manual | |
| Operating Temperature | 32°F to 113°F (0°C to 40°C) | |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) | |
| Humidity | 80% non-condensing | |
| Size | 8.3” x 3.7” x 1.9” (210mm x 95mm x 47mm) without boot
8.7” x 4.3” x 2.6 (220mm x 110mm x 65mm) with boot |
|
| Weight | 1.3lbs (570g) without boot
1.9lbs (850g) with boot |
|
| Battery Type | 9V Alkaline (NEDA 1604) | |
| Battery Life | 50hrs Typical | |
| OverInput Category | CAT III 600V | |
| Agency Approval | cULus 61010-1, IEC 61010-1 | |
| Warranty | Limited Lifetime | |
|
|
